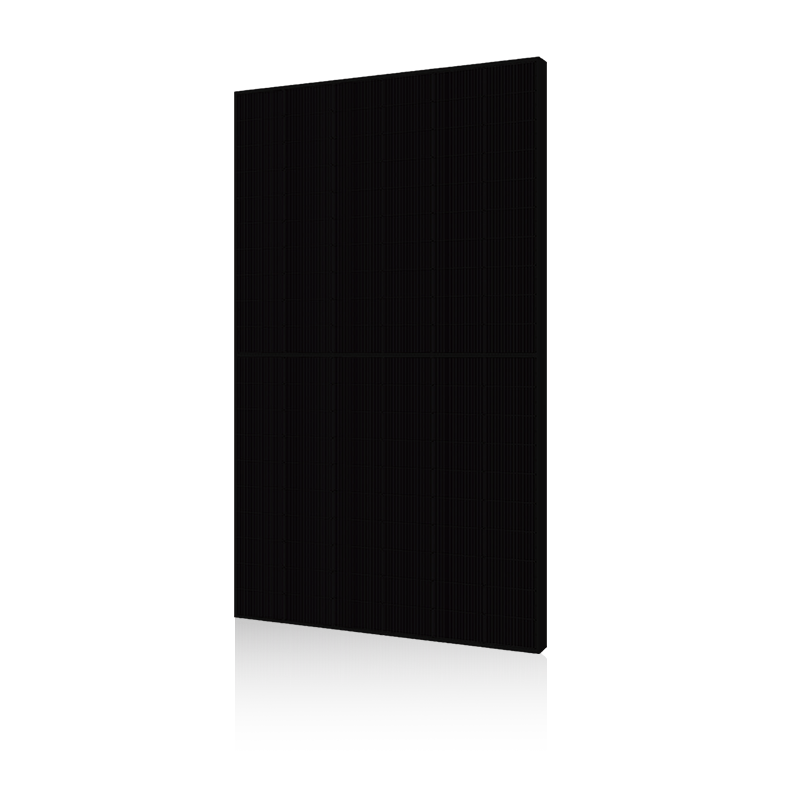

SPDGxxx-N120R10（470-500W) All Black 35 Edge
PREV：SPDGxxx-N120R10（470-500W) All Black 30 Edge
NEXT：SPDGxxx-N120R10（470-500W) Double Glazed White Mesh Silver Frame
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 470W 475W 480W 485W 490W 495W 500W
Max power(Pmax) 470 475 480 485 490 495 500
Max power voltage(Vmp) 35.56 35.72 35.88 36.04 36.19 36.35 36.53
Max power current(lmp) 13.22 13.30 13.38 13.46 13.54 13.62 13.69
Open circuit voltage(Voc) 43.00 43.15 43.29 43.43 43.57 43.72 43.87
Short circuit current(lsc) 13.77 13.85 13.94 14.02 14.09 14.17 14.25
Module Efficiency(%) 21.20 21.43 21.65 21.88 22.10 22.33 22.55
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 470W 475W 480W 485W 490W 495W 500W
Max power(Pmax) 354.6 358.5 362.2 366.2 370 374 377.8
Max power voltage(Vmp) 33.7 33.9 34 34.2 34.4 34.5 34.7
Max power current(Imp) 10.51 10.57 10.64 10.71 10.77 10.85 10.9
Open circuit voltage(Voc) 40.6 40.7 40.9 41 41.2 41.3 41.5
Short circuit current(Isc) 11.10 11.16 11.24 11.30 11.36 11.42 11.48

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 470W 475W 480W 485W 490W 495W 500W
Total power Pmax/W 540.5 546.25 552 557.75 563.50 563.25 575
Vmp/V(Total) 35.56 35.72 35.88 36.04 36.19 36.35 36.53
Imp/A(Total) 15.20 15.29 15.38 15.48 15.57 15.66 15.74
Voc/V(Total) 43.00 43.15 43.29 43.43 43.57 43.72 43.87
Isc/A(Total) 15.84 15.93 16.03 16.12 16.20 16.30 16.39

Mechanical Data
Dimensions 1955x1134x35mm
Weight 26.5kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm white mesh glazed tempered glass
Output cables 4mm², symmetrical lengths 1100mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182mm×93.4mm
Number of cells
 120cells ( Half-Cell )
