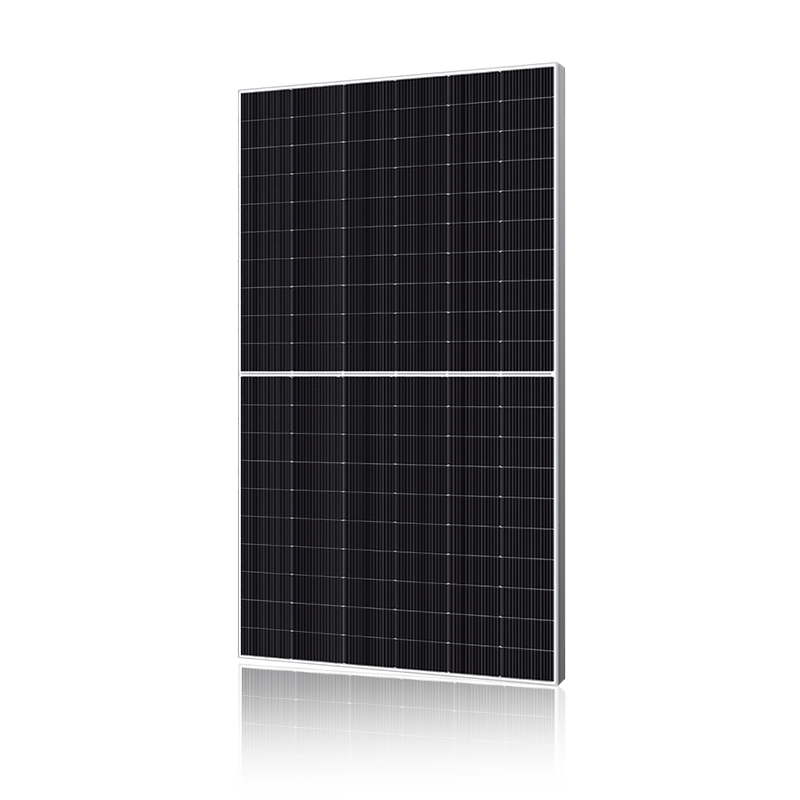

SPDGxxx-N120R12（540-565W) Double Glazed White Mesh Silver Frame
PREV：SPDGxxx-N108R12（480-505W）Double Glazing Silver Frame Fully Transparent 30mm
NEXT：SPDGxxx-N132R12（595-620W）Double Glazed White Mesh Silver Frame 30mm
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 540W 545W 550W 555W 560W 565W
Max power(Pmax) 540 545 550 555 560 565
Max power voltage(Vmp) 36.37 36.61 36.84 37.05 37.29 37.52
Max power current(lmp) 14.85 14.89 14.93 14.98 15.02 15.06
Open circuit voltage(Voc) 43.58 43.83 44.08 44.33 44.56 44.79
Short circuit current(lsc) 15.74 15.78 15.82 15.87 15.91 15.95
Module Efficiency(%) 21.92 22.13 22.33 22.53 22.74 22.94
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 540W 545W 550W 555W 560W 565W
5Max power(Pmax) 407.4 411.5 415.6 419.7 423.6 427.6
Max power voltage(Vmp) 34.10 34.30 34.60 34.80 35.00 35.2
Max power current(Imp) 11.96 12 12.03 12.07 12.11 12.14
Open circuit voltage(Voc) 41.2 41.5 41.7 42 42.2 42.5
Short circuit current(Isc) 12.68 12.71 12.74 12.78 12.81 12.84

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 540W 545W 550W 555W 560W 565W
Total power Pmax/W 621 626.75 632.5 638.25 644 649.75
Vmp/V(Total) 36.37 36.61 36.84 37.05 37.29 37.52
Imp/A(Total) 17.07 17.12 17.17 17.23 17.27 17.32
Voc/V(Total) 43.58 43.83 44.08 44.33 44.56 44.79
Isc/A(Total) 18.1 18.15 18.19 18.25 18.3 18.34

Mechanical Data
Dimensions 2172×1134×30mm
Weight 30.7kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm white mesh semi-tempered glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182.2mm×105mm
Number of cells
 120cells ( Half-Cell )
