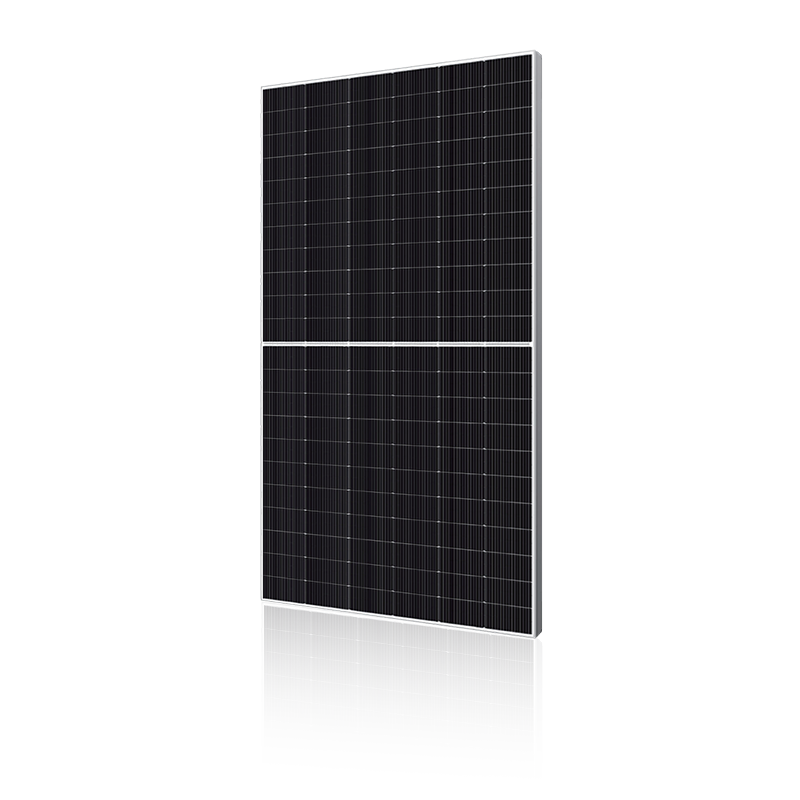

SPDGxxx-N132R10（520-545W) Double Glazed White Mesh Silver Frame

  • Warranty & Guarantee
  • Withstand Strong
  • Pid Resistance
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPDGxxx-N132R10（520-545W) Double Glazed White Mesh Silver Frame
PREV：SPDGxxx-N120R10（470-500W) Double Glazed White Mesh Silver Frame
NEXT：SPDGxxx-N132R10（520-545W) Double Glass Full Transparency Black Frame
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 520W 525W 530W 535W 540W 545W
Max power(Pmax) 520 525 530 535 540 545
Max power voltage(Vmp) 39.25 39.39 39.53 39.66 39.80 39.96
Max power current(lmp) 13.25 13.33 13.41 13.49 13.57 13.64
Open circuit voltage(Voc) 47.46 47.59 47.72 47.87 48.01 48.14
Short circuit current(lsc) 13.80 13.88 13.96 14.03 14.11 14.19
Module Efficiency(%) 21.38 21.58 21.79 21.99 22.20 22.41
Max system voltage
Maximum Series Fuse Rating

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 520W 525W 530W 535W 540W 545W
Max power(Pmax) 392.4 396.3 400.2 404.1 408.1 411.9
Max power voltage(Vmp) 37.3 37.4 37.6 37.7 37.9 38
Max power current(Imp) 10.53 10.6 10.66 10.72 10.78 10.84
Open circuit voltage(Voc) 44.8 45 45.1 45.2 45.4 45.5
Short circuit current(Isc) 11.12 11.19 11.25 11.31 11.37 11.44

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 520W 525W 530W 535W 540W 545W
Total power Pmax/W 598 603.75 609.5 615.25 621 626.75
Vmp/V(Total) 39.25 39.39 39.53 39.66 39.80 39.96
Imp/A(Total) 15.24 15.33 15.42 15.51 15.60 15.68
Voc/V(Total) 47.46 47.59 47.72 47.87 48.01 48.14
Isc/A(Total) 15.87 15.96 16.05 16.13 16.23 16.32

Mechanical Data
Dimensions 2145x1134x35mm
Weight 29.8kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm white mesh glazed tempered glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182mm×93.4mm
Number of cells
 132cells ( Half-Cell )
