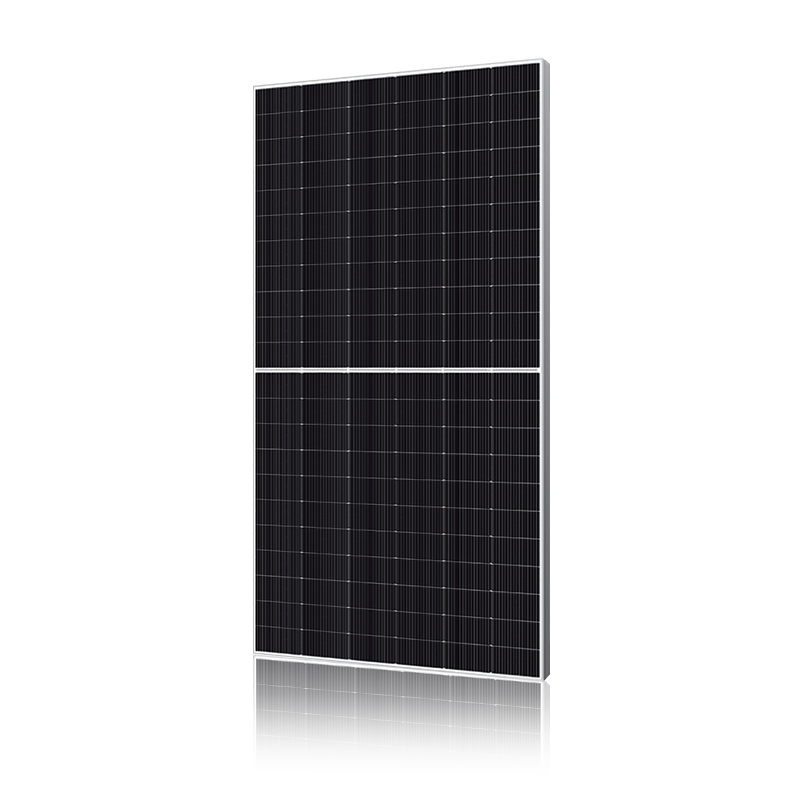

SPDGxxx-N132R12（595-620W）Double Glazed White Mesh Silver Frame 33mm

  • Warranty & Guarantee
  • Withstand Strong
  • Pid Resistance
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPDGxxx-N132R12（595-620W）Double Glazed White Mesh Silver Frame 33mm
PREV：SPDGxxx-N132R12（595-620W）Double Glazed White Mesh Silver Frame 30mm
NEXT：SPDGxxx-N132R12（595-620W）Double Glazed White Mesh Silver Frame 35mm
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 595W 600W 605W 610W 615W 620W
Max power(Pmax) 595 600 605 610 615 620
Max power voltage(Vmp) 40.02 40.27 40.5 40.73 40.95 41.2
Max power current(lmp) 14.87 14.9 14.94 14.98 15.02 15.05
Open circuit voltage(Voc) 47.99 48.24 48.5 48.76 49.01 49.25
Short circuit current(lsc) 15.74 15.78 15.81 15.85 15.88 15.92
Module Efficiency(%) 22.03 22.21 22.4 22.58 22.77 22.95
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 595W 600W 605W 610W 615W 620W
5Max power(Pmax) 449.10 452.80 457.00 461.10 465.30 469.30
Max power voltage(Vmp) 37.50 37.70 38.00 38.20 38.50 38.70
Max power current(Imp) 11.96 12.00 12.03 12.06 12.09 12.12
Open circuit voltage(Voc) 45.40 45.60 45.90 46.20 46.40 46.70
Short circuit current(Isc) 12.68 12.71 12.73 12.76 12.79 12.82

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 595W 600W 605W 610W 615W 620W
Total power Pmax/W 684.25 690.00 695.75 701.50 707.25 713.00
Vmp/V(Total) 40.02 40.27 40.50 40.73 40.95 41.20
Imp/A(Total) 17.10 17.13 17.18 17.22 17.27 17.31
Voc/V(Total) 47.99 48.24 48.50 48.76 49.01 49.25
Isc/A(Total) 18.10 18.15 18.18 18.23 18.26 18.31

Mechanical Data
Dimensions 2382x1134x33mm
Weight 33.7kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm white mesh semi-tempered glass
Output cables 4mm², symmetrical lengths 1400mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline , 182.2mmx105mm
Number of cells
 132cells ( Half-Cell )
