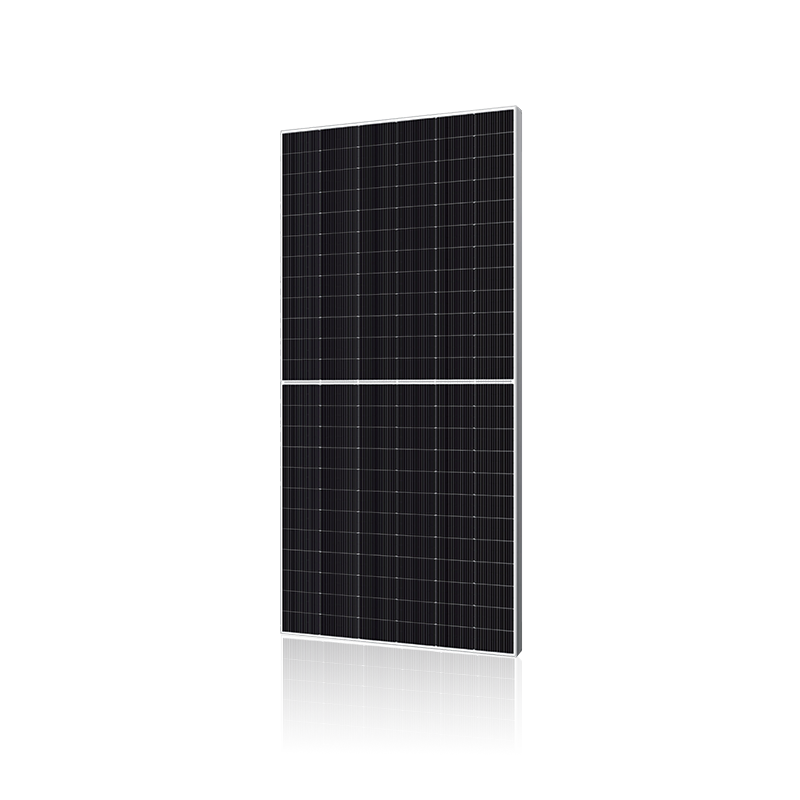

SPxxx-N156R10（620-645W) Silver Frame
PREV：SPxxx-N144R10（575-610W）Silver Frame
NEXT：SPDGxxx-N120RL10（485-510W）Double-Glazed Black Frame With Black Grid
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 620W 625W 630W 635W 640W 645W
Max power(Pmax) 620 625 630 635 640 645
Max power voltage(Vmp) 46.45 46.54 46.64 46.73 46.82 46.91
Max power current(lmp) 13.35 13.43 13.51 13.59 13.67 13.75
Open circuit voltage(Voc) 56.12 56.2 56.29 56.4 56.51 56.62
Short circuit current(lsc) 13.9 13.99 14.07 14.14 14.21 14.28
Module Efficiency(%) 21.65 21.83 22.00 22.18 22.35 22.53
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 25A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 620W 625W 630W 635W 640W 645W
Max power(Pmax) 468 471.6 475.6 479.5 483.3 487.3
Max power voltage(Vmp) 44.1 44.2 44.3 44.4 44.5 44.6
Max power current(Imp) 10.61 10.68 10.74 10.79 10.86 10.92
Open circuit voltage(Voc) 53 53.1 53.2 53.3 53.4 53.5
Short circuit current(Isc) 11.21 11.28 11.34 11.40 11.45 11.51

Mechanical Data
Dimensions 2525x1134x30mm
Weight 30kg
Glass

3.2mm ultra clear embossed tempered coated glass
Output cables 4mm², symmetrical lengths 1400mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline , 182mmx93.4m m
Number of cells
 156cells ( Half-Cell )
