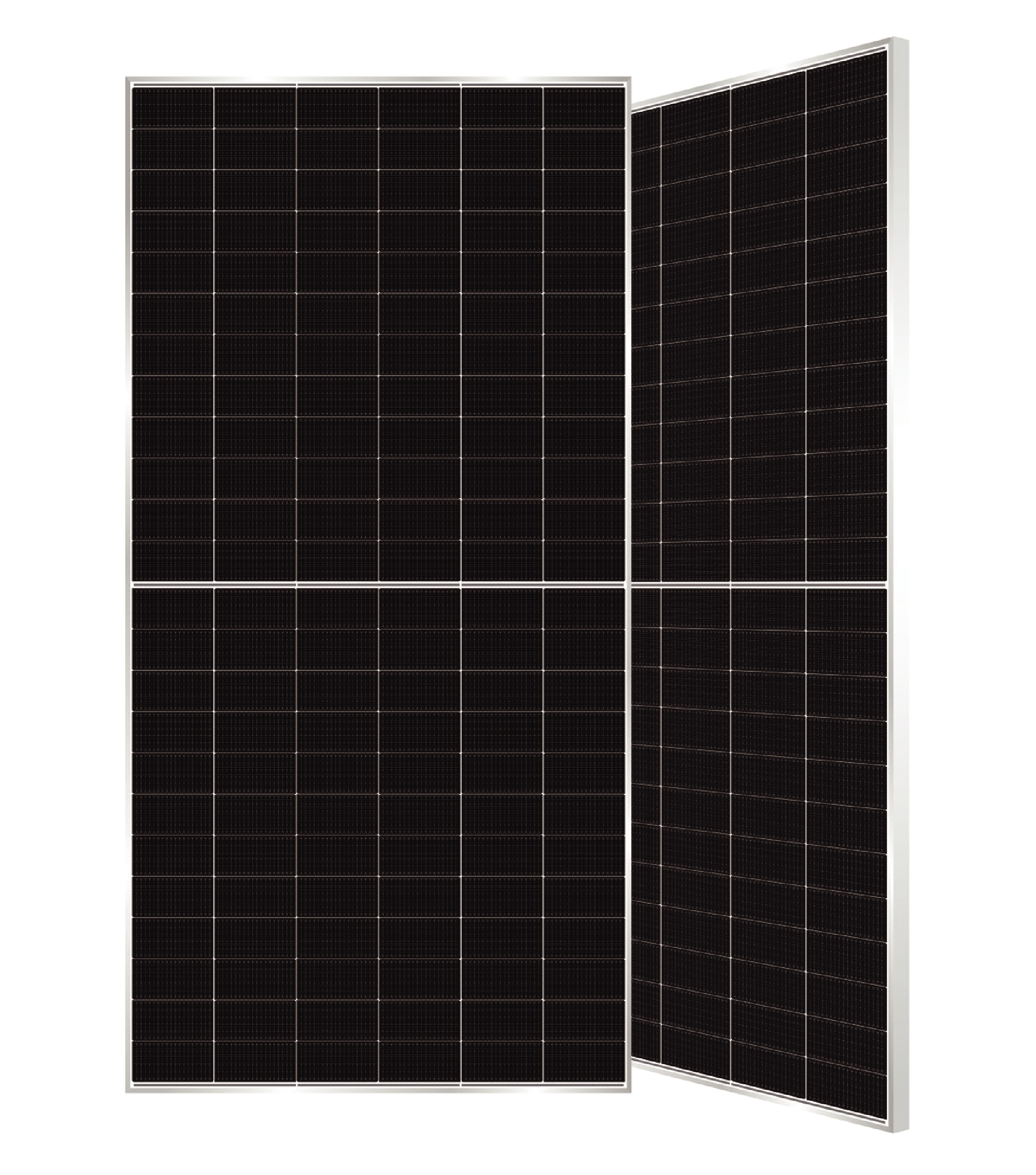

SP-182-144DSxxx （570-600W) silver frame white mesh

  • Warranty & Guarantee
  • Withstand Strong
  • Advanced Bifacial Efficiency
  • R&D And Production
  • High Energy Yield
Contact Us Download PDF
SP-182-144DSxxx （570-600W) silver frame white mesh
PREV：SP-210R-132DSxxx （605-635W) Double Glass Silver Frame
NEXT：No previous article
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 570W 575W 580W 585W 590W 595W 600W
Max power(Pmax) 570 575 580 585 590 595 600
Max power voltage(Vmp) 44.57 44.79 45.00 45.21 45.42 45.63 45.84
Max power current(lmp) 12.79 12.84 12.89 12.94 12.99 13.04 13.09
Open circuit voltage(Voc) 53.55 53.72 53.92 54.12 54.31 54.50 54.70
Short circuit current(lsc) 13.24 13.30 13.35 13.40 13.45 13.50 13.55
Module Efficiency(%) 22.06 22.25 22.44 22.64 22.83 23.02

23.22
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 25A
Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 570W 575W 580W 585W 590W 595W 600W
Total power Pmax/W 655.5 661.25 667 672.75 678.5 684.25 690
Vmp/V(Total) 44.57 44.79 45.00 45.21 45.42 45.63 45.84
Imp/A(Total) 14.71 14.76 14.82 14.88 14.94 15.00 15.05
Voc/V(Total) 53.55 53.72 53.92 54.12 54.31 54.50 54.70
Isc/A(Total) 15.22 15.29 15.35 15.41 15.47 15.52 15.58
Mechanical Data
Dimensions 2279x1134x30mm
Weight 32 kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm white mesh semi-tempered glass
Output cables 4mm², 1300mm in length, length can be customized / UV Resistant
Connectors MC4 compatible IP68
Cell type
 Mono-Crystalline ,Bifacial HJT, 182x91mm
Number of cells
 144 cells ( Half-Cell )
