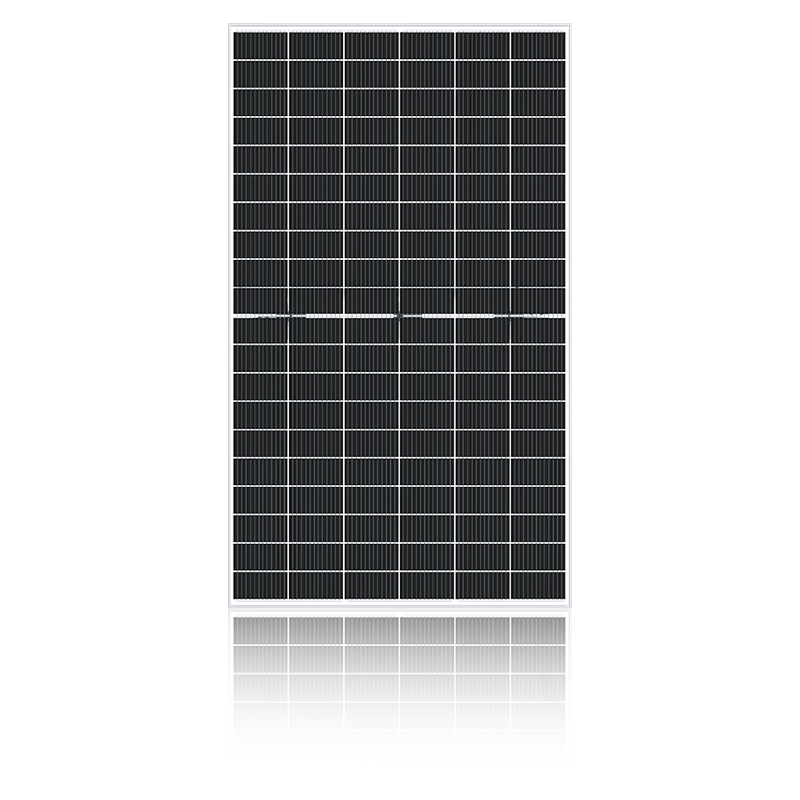

SPDGxxx-120M12(580-610W) Double Glass Full Transparent Silver Frame

  • Warranty & Guarantee
  • Withstand Strong
  • Two-Sided Benefits
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPDGxxx-120M12(580-610W) Double Glass Full Transparent Silver Frame
PREV：SPxxx-144M10 (530-565W) Silver Frame
NEXT：SPDGxxx-120M12 (580-610W) Double Glass Silver Frame
Electrical Parameters At Standard Test Conditions
STC:AM=1.5, 1000W/m², Cells Temperature25℃
Typical type 580W 585W 590W 595W 600W 605W

610W
Max power(Pmax) 580 585 590 595 600 605 610
Max power voltage(Vmp) 33.60 33.80 34.00 34.20 34.40 34.60 34.80
Max power current(lmp) 17.27 17.31 17.35 17.40 17.45 17.49 17.53
Open circuit voltage(Voc) 40.70 40.90 41.10 41.30 41.50 41.70 41.90
Short circuit current(lsc) 18.30 18.37 18.42 18.47 18.52 18.57 18.62
Module Efficiency(%) 20.49 20.67 20.85 21.02 21.20 21.38 21.55
Max system voltage DC 1500V(TÜV,UL)
Maximum Series Fuse Rating 35A(TÜV) / 40A(UL)

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 580W 585W 590W 595W 600W 605W 610W
Max power(Pmax) 433 437 441 445 449 453 457
Max power voltage(Vmp) 31.40 31.50 31.70 31.80 32.10 32.20 32.40
Max power current(Imp) 13.79 13.88 13.92 13.97 14.02 14.06 14.10
Open circuit voltage(Voc) 38.30 38.40 39.60 38.80 39.00 39.20 39.40
Short circuit current(Isc) 14.74 14.78 14.82 14.86 14.90 14.94 14.98

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 580W 585W 590W 595W 600W 605W 610W
Total power Pmax/W 667 672.75 678.5 684.25 690 695.75 701.5
Vmp/V(Total) 33.60 33.80 34.00 34.20 34.40 34.60 34.80
Imp/A(Total) 19.85 19.90 19.96 20.01 20.06 20.11 20.16
Voc/V(Total) 40.70 40.90 41.10 41.03 41.50 41.70 41.90
Isc/A(Total) 21.07 21.13 21.18 21.24 21.30 21.35 21.41

Mechanical Data
Dimensions 2172x1303x35mm
Weight 35.9 kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm semi-tempered glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 Mono-Crystalline PERC, 210x105mm
Number of cells
 120cells ( Half-Cell )
