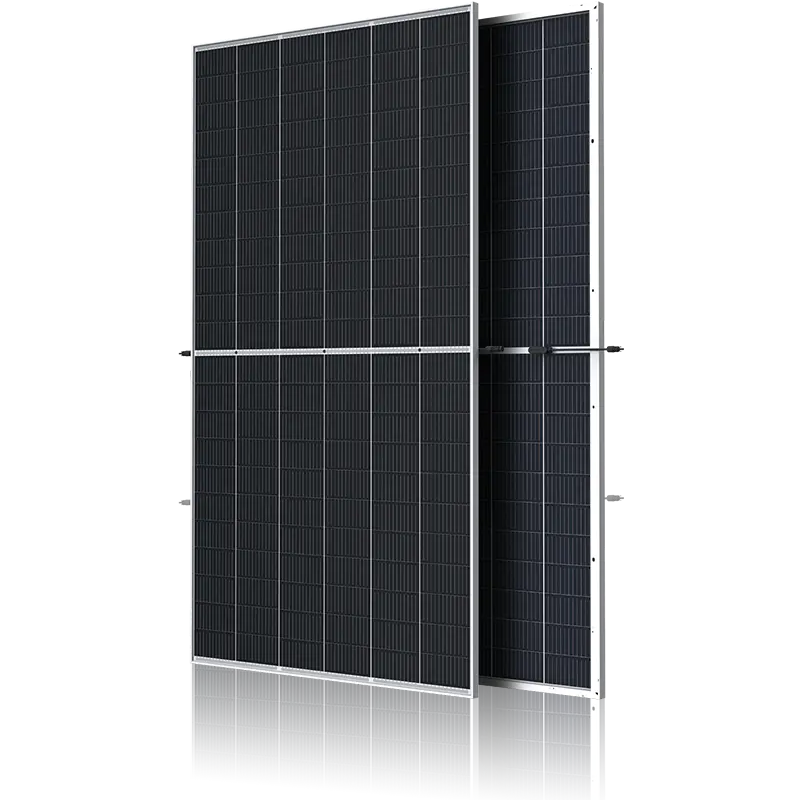

SPDGxxx-132M12 (635-670W) Double Glass Silver Frame

  • Warranty & Guarantee
  • Withstand Strong
  • Two-Sided Benefits
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPDGxxx-132M12 (635-670W) Double Glass Silver Frame
PREV：SPDGxxx-132M12 (635-670W) Double Glass Full Transparent Silver Frame
NEXT：SPxxx-120M12 (580-605W) Silver Frame
Electrical Parameters At Standard Test Conditions
STC:AM=1.5, 1000W/m², Cells Temperature25℃
Typical type 635W 640W 645W 650W 655W 660W 665W 670W
Max power(Pmax) 635 640 645 650 655 660 665 670
Max power voltage(Vmp) 36.75 36.97 37.18 37.38 37.58 37.79 38.01 38.22
Max power current(lmp) 17.28 17.31 17.35 17.39 17.43 17.47 17.5 17.53
Open circuit voltage(Voc) 44.64 44.85 45.06 45.27 45.48 45.69 45.91 46.13
Short circuit current(lsc) 18.32 18.36 18.4 18.44 18.48 18.52 18.56 18.60
Module Efficiency(%) 20.44 20.60 20.76 20.92 21.09 21.25 21.41 21.57
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 35A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 635W 640W 645W 650W 655W 660W 665W 670W
Max power(Pmax) 474 478 482 486 490 494 499 509
Max power voltage(Vmp) 34.30 34.50 34.70 34.90 35.10 35.30 35.50 36.20
Max power current(Imp) 13.83 13.86 13.90 13.93 13.96 14.00 14.03 14.07
Open circuit voltage(Voc) 41.80 42.00 42.30 42.50 42.70 42.90 43.20 43.90
Short circuit current(Isc) 14.70 14.77 14.80 14.84 14.87 14.90 14.93 14.96

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 635W 640W 645W 650W 655W 660W 665W 670W
Total power Pmax/W 730.25 736 741.75 747.5 753.25 759 764.75 770.5
Vmp/V(Total) 36.75 36.97 37.18 37.78 37.79 37.79 38.01 38.22
Imp/A(Total) 19.87 19.91 19.95 20.00 20.08 20.08 20.12 20.16
Voc/V(Total) 44.64 44.85 45.06 45.27 45.69 45.69 45.91 46.13
Isc/A(Total) 21.07 21.11 21.16 21.21 21.30 21.30 21.34 21.39

Mechanical Data
Dimensions 2384x1303x35mm
Weight 38.3kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm semi-tempered glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 Mono-Crystalline PERC, 210x105mm
Number of cells
 132cells ( Half-Cell )
