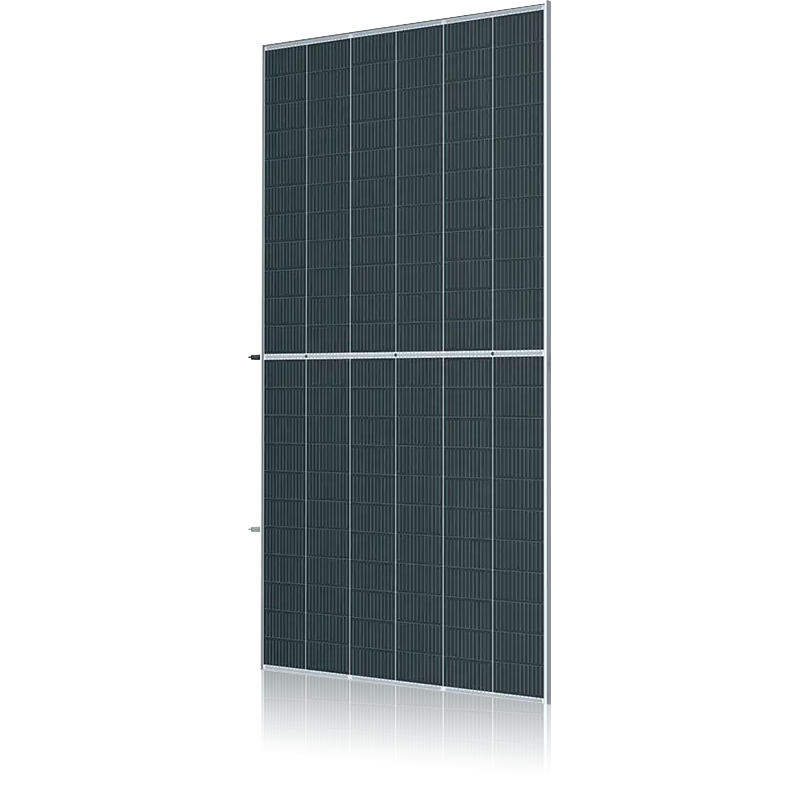

SPxxx-132M12 (635-670W) Silver Frame
PREV：SPxxx-120M12 (580-605W) Silver Frame
NEXT：No previous article
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25℃
Typical type 635W 640W 645W 650W 655W 660W 665W 670W
Max power(Pmax) 635 640 645 650 655 660 665 670
Max power voltage(Vmp) 36.75 36.97 37.18 37.38 37.58 37.79 38.01 38.22
Max power current(lmp) 17.28 17.31 17.35 17.39 17.43 17.47 17.5 17.53
Open circuit voltage(Voc) 44.64 44.85 45.06 45.27 45.48 45.69 45.91 46.13
Short circuit current(lsc) 18.32 18.36 18.4 18.44 18.48 18.52 18.56 18.60
Module Efficiency(%) 20.44 20.60 20.76 20.92 21.09 21.25 21.41 21.57
Max system voltage DC 1500V(TÜV,UL) / 1000V(CUL)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s
Typical type 635W 640W 645W 650W 655W 660W 665W 670W
Max power(Pmax) 474 478 482 486 490 494 499 509
Max power voltage(Vmp) 34.30 34.50 34.70 34.90 35.10 35.30 35.50 36.20
Max power current(Imp) 13.83 13.86 13.90 13.93 13.96 14.00 14.03 14.07
Open circuit voltage(Voc) 41.80 42.00 42.30 42.50 42.70 42.90 43.20 43.90
Short circuit current(Isc) 14.70 14.77 14.80 14.84 14.87 14.90 14.93 14.96
Mechanical Data
Dimensions 2384x1303x35mm
Weight 34 kg
Glass 3.2mm ultra clear embossed tempered coated glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 Mono-Crystalline PERC, 210x105mm
Number of cells
 132 cells ( Half-Cell )
