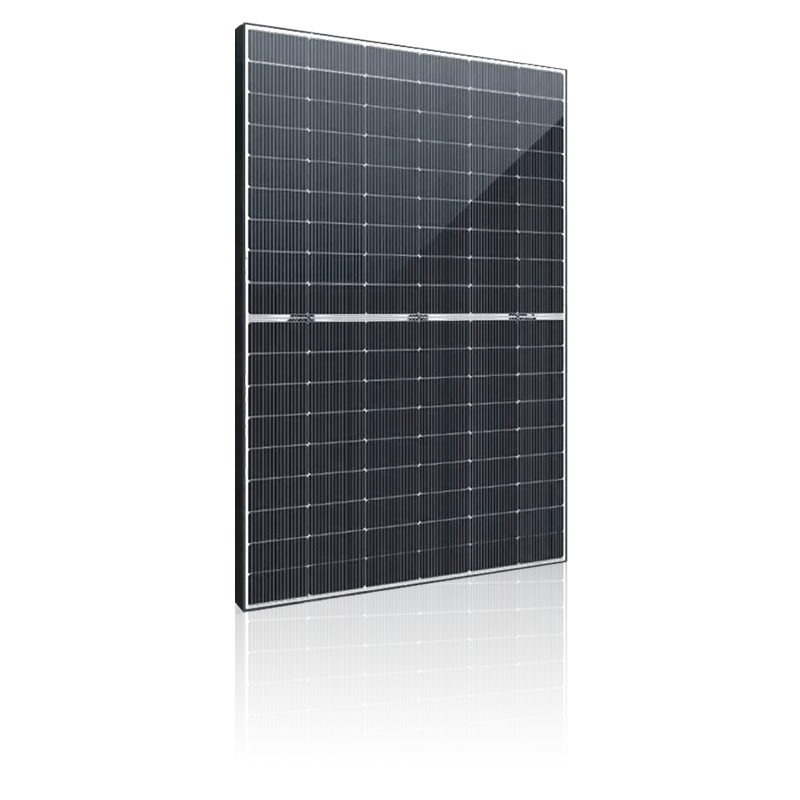

SPDGxxx-N108M10 (410-440W) Double Glass Black Frame Full Transparent

  • Warranty & Guarantee
  • Withstand Strong
  • Pid Resistance
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPDGxxx-N108M10 (410-440W) Double Glass Black Frame Full Transparent
PREV：SPDGxxx-N108M10 (410-440W) Double Glass Black Frame Black Mesh
NEXT：SPDGxxx-N120M10 (455-490W) Double Glass Black Frame Black Mesh
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25℃
Typical type 410W 415W 420W 425W 430W 435W 440W
Max power(Pmax) 410 415 420 425 430 435 440
Max power voltage(Vmp) 31.25 31.37 31.49 31.64 31.79 31.94 32.09
Max power current(lmp) 13.12 13.23 13.34 13.44 13.53 13.62 13.72
Open circuit voltage(Voc) 37.94 38.04 38.13 38.24 38.34 38.43 38.53
Short circuit current(lsc) 13.85 13.96 14.07 14.16 14.25 14.34 14.43
Module Efficiency(%) 21.00 21.25 21.51 21.76 22.02 22.28 22.53
Max system voltage DC 1500V(TÜV,UL)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 410W 415W 420W 425W 430W 435W 440W
Max power(Pmax) 308 312 316 320 324 325 329
Max power voltage(Vmp) 29.4 29.5 29.6 29.7 29.9 29.80 29.90
Max power current(Imp) 10.49 10.58 10.67 10.75 10.84 10.91 11.00
Open circuit voltage(Voc) 35.7 35.8 35.9 36 36.1 36.00 36.10
Short circuit current(Isc) 11.16 11.25 11.34 11.41 11.48 11.56 11.63

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 410W 415W 420W 425W 430W 435W 440W
Total power Pmax/W 471.5 477.25 483.00 488.75 495.50 500.25 506
Vmp/V(Total) 31.25 31.37 31.49 31.64 31.79 31.94 32.09
Imp/A(Total) 15.09 15.21 15.34 15.45 15.56 15.66 15.77
Voc/V(Total) 37.94 38.04 38.13 38.24 38.34 38.43 38.53
Isc/A(Total) 15.93 16.03 16.18 16.28 16.39 16.49 16.59

Mechanical Data
Dimensions 1722x1134x30mm
Weight 23.3kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm semi-tempered glass
Output cables 4mm², symmetrical lengths 1100mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182x91mm
Number of cells
 108cells ( Half-Cell )
