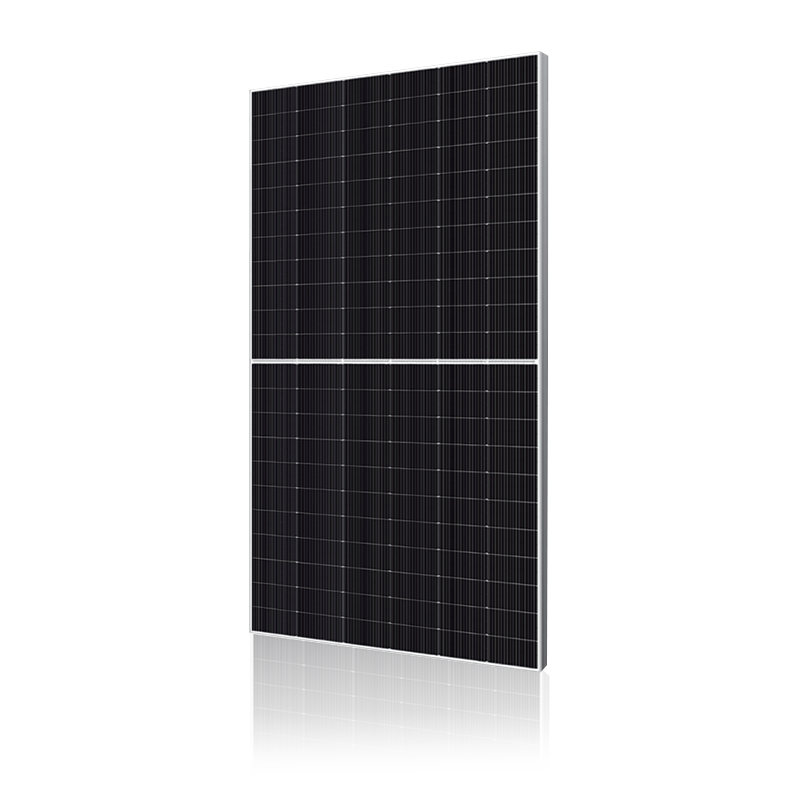

SPDGxxx-N132RX10（565-590W）Double Glazed Silver Framed White Grid

  • Warranty & Guarantee
  • Withstand Strong
  • Pid Resistance
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPDGxxx-N132RX10（565-590W）Double Glazed Silver Framed White Grid
PREV：SPDGxxx-N132RX10（565-590W）Double Glass Black Frame Full Transparency
NEXT：SPDGxxx-N144RX10（615-640W）Double Glazed Silver Framed White Grid
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 565W 570W 575W 580W 585W 590W
Max power(Pmax) 565 570 575 580 585 590
Max power voltage(Vmp) 39.7 39.91 40.12 40.33 50.54 40.75
Max power current(lmp) 14.23 14.28 14.33 14.38 14.43 14.48
Open circuit voltage(Voc) 47.56 47.76 47.97 48.19 48.4 48.61
Short circuit current(lsc) 15.05 15.11 15.16 15.21 15.26 15.31
Module Efficiency(%) 21.86 22.06 22.25 22.44 22.64 22.83
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 565W 570W 575W 580W 585W 590W
5Max power(Pmax) 425.7 429.5 433.7 437.9 442 446
Max power voltage(Vmp) 37.2 37.4 37.6 37.8 38 38.2
Max power current(Imp) 11.45 11.5 11.54 11.58 11.62 11.67
Open circuit voltage(Voc) 44.9 45.1 45.3 45.6 45.8 46
Short circuit current(Isc) 12.12 12.17 12.21 12.25 12.29 12.33

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 565W 570W 575W 580W 585W 590W
Total power Pmax/W 649.75 655.5 661.25 667 672.75 678.5
Vmp/V(Total) 39.7 39.91 40.12 40.33 40.54 40.75
Imp/A(Total) 16.37 16.42 16.48 16.54 6.59 16.65
Voc/V(Total) 47.56 47.76 47.97 48.19 48.4 48.61
Isc/A(Total) 17.31 17.38 17.43 17.49 17.55 17.61

Mechanical Data
Dimensions 2279x1134x30mm
Weight 32kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm semi-tempered glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline , 182.2mmx99.5mm
Number of cells
 132cells ( Half-Cell )
