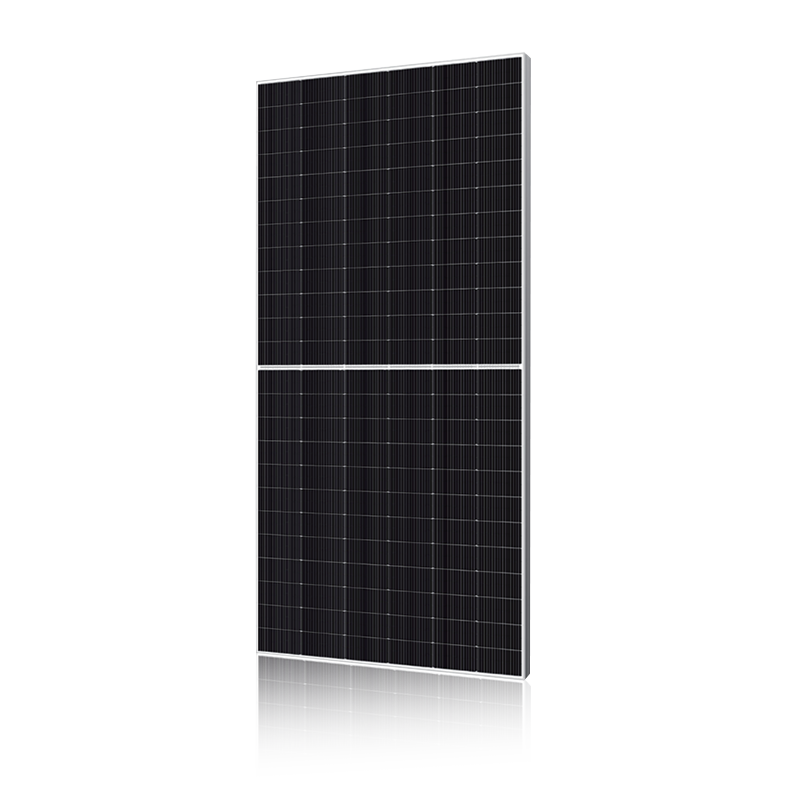

SPDGxxx-N144RX10（615-640W）Double Glazed Silver Framed White Grid
PREV：SPDGxxx-N132RX10（565-590W）Double Glazed Silver Framed White Grid
NEXT：SPDGxxx-N96R12（425-450W）Black Grid
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 615W 620W 625W 630W 635W 640W
Max power(Pmax) 615 620 625 630 635 640
Max power voltage(Vmp) 43.28 43.48 43.68 43.88 44.07 44.26
Max power current(lmp) 14.21 14.26 14.31 14.36 14.41 14.46
Open circuit voltage(Voc) 51.85 52.05 52.25 52.45 52.65 52.85
Short circuit current(lsc) 15.03 15.08 15.13 15.18 15.23 15.28
Module Efficiency(%) 22 22.18 22.36 22.54 22.72 22.9
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 615W 620W 625W 630W 635W 640W
5Max power(Pmax) 463.5 467.5 471.6 475.4 479.5 483.4
Max power voltage(Vmp) 40.6 40.7 41 41.1 41.3 41.5
Max power current(Imp) 11.41 11.48 11.52 11.56 11.6 11.64
Open circuit voltage(Voc) 49 49.2 49.4 49.6 49.8 50
Short circuit current(Isc) 12.11 12.15 12.19 12.23 12.27 12.31

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 615W 620W 625W 630W 635W 640W
Total power Pmax/W 707.25 713 718.75 724.5 730.25 736
Vmp/V(Total) 43.28 43.48 43.68 43.88 44.07 44.26
Imp/A(Total) 16.34 16.40 16.45 16.51 16.57 16.63
Voc/V(Total) 51.85 52.05 52.25 52.45 52.65 52.85
Isc/A(Total) 17.28 17.34 17.4 17.46 17.51 17.57

Mechanical Data
Dimensions 2465x1134x35mm
Weight 35kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm white mesh semi-tempered glass
Output cables 4mm², symmetrical lengths 1400mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline , 182.2mmx99.5mm
Number of cells
 144cells ( Half-Cell )
