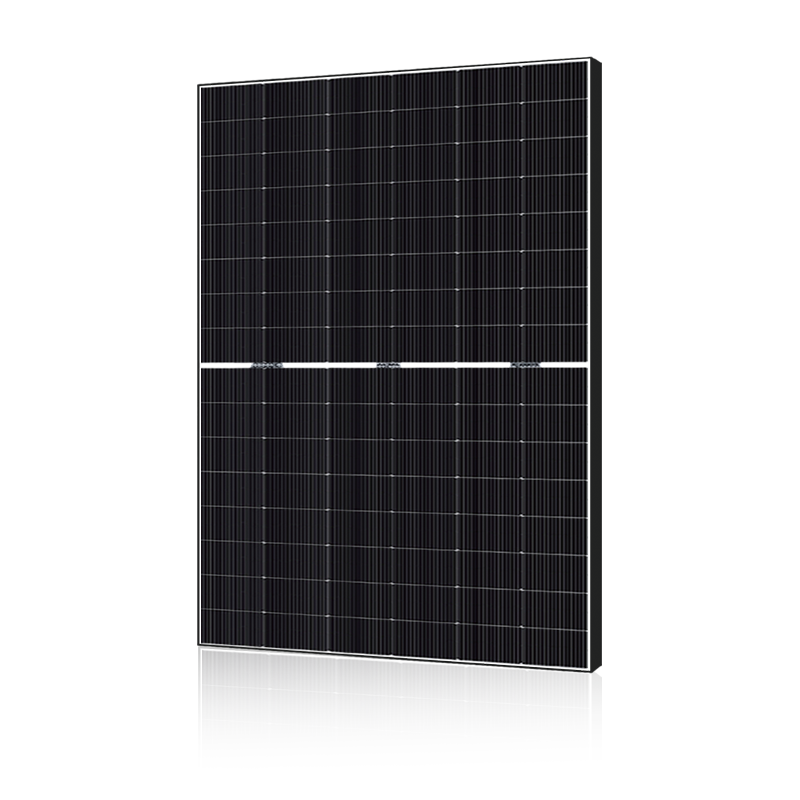

SPDGxxx-N96R12（425-450W）Double Glazing Black Frame Fully Transparent
PREV：SPDGxxx-N96R12（425-450W）Black Grid
NEXT：SPDGxxx-N108R12（480-505W）Double Glazing Black Frame Fully Transparent 30mm
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 425W 430W 435W 440W 445W 450W
Max power(Pmax) 425 430 435 440 445 450
Max power voltage(Vmp) 28.76 28.98 29.22 29.46 29.69 29.93
Max power current(lmp) 14.78 14.84 14.89 14.94 14.99 15.04
Open circuit voltage(Voc) 34.5 34.77 35.03 35.28 35.54 35.8
Short circuit current(lsc) 15.65 15.7 15.77 15.82 15.86 15.9
Module Efficiency(%) 21.27 21.52 21.77 22.02 22.27 22.52
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 425W 430W 435W 440W 445W 450W
5Max power(Pmax) 320.1 324.2 328.3 332.5 336.5 340.7
Max power voltage(Vmp) 26.9 27.2 27.4 27.6 27.9 28.1
Max power current(Imp) 11.90 11.93 11.9 12.03 12.06 12.11
Open circuit voltage(Voc) 32.6 32.9 33.10 33.4 33.7 33.9
Short circuit current(Isc) 12.60 12.64 12.70 12.74 12.77 12.80

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 425W 430W 435W 440W 445W 450W
Total power Pmax/W 488.75 494.5 500.25 506 511.75 517.5
Vmp/V(Total) 28.76 28.98 29.22 29.46 29.69 29.93
Imp/A(Total) 16.99 17.06 17.12 17.18 17.24 17.29
Voc/V(Total) 34.5 34.77 35.03 35.28 35.54 35.8
Isc/A(Total) 18 18.06 18.14 18.19 18.24 18.29

Mechanical Data
Dimensions 2465x1134x30mm
Weight 23.8kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm white mesh semi-tempered glass
Output cables 4mm², symmetrical lengths 1100mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline , 182.2mm×105mm
Number of cells
 96cells ( Half-Cell )
