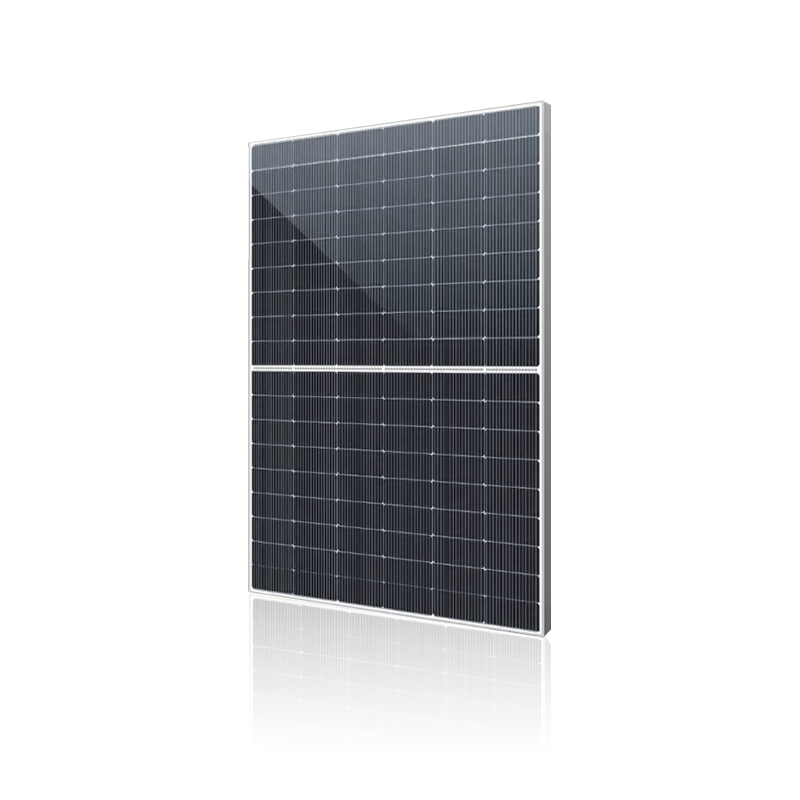

SPxxx-N108R10（425-450W) Silver Frame
PREV：SPxxx-N108R10（425-450W) Black Frame
NEXT：SPxxx-N120R10（480-505W) Silver Frame
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 425W 430W 435W 440W 445W 450W
Max power(Pmax) 425 430 435 440 445 450
Max power voltage(Vmp) 32.04 32.22 32.41 32.60 32.79 32.98
Max power current(lmp) 13.27 13.35 13.43 13.50 13.58 13.65
Open circuit voltage(Voc) 38.72 38.90 39.09 39.27 39.45 39.63
Short circuit current(lsc) 13.82 13.90 13.98 14.05 14.13 14.21
Module Efficiency(%) 21.27 21.52 21.77 22.02 22.27 22.52
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 25A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 425W 430W 435W 440W 445W 450W
Max power(Pmax) 320.6 324.6 328.6 332.4 336.5 340.3
Max power voltage(Vmp) 30.4 30.6 30.8 31 31.2 31.3
Max power current(Imp) 10.55 10.61 10.68 10.73 10.8 10.86
Open circuit voltage(Voc) 36.5 36.7 36.9 37.1 37.3 37.5
Short circuit current(Isc) 11.14 11.2 11.27 11.32 11.39 11.45
Mechanical Data
Dimensions 1762x1134x30mm
Weight 21.5kg
Glass

3.2mm ultra clear embossed tempered coated glass
Output cables 4mm², symmetrical lengths 1100mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline , 182mmx93.4mm
Number of cells
 108cells ( Half-Cell )
