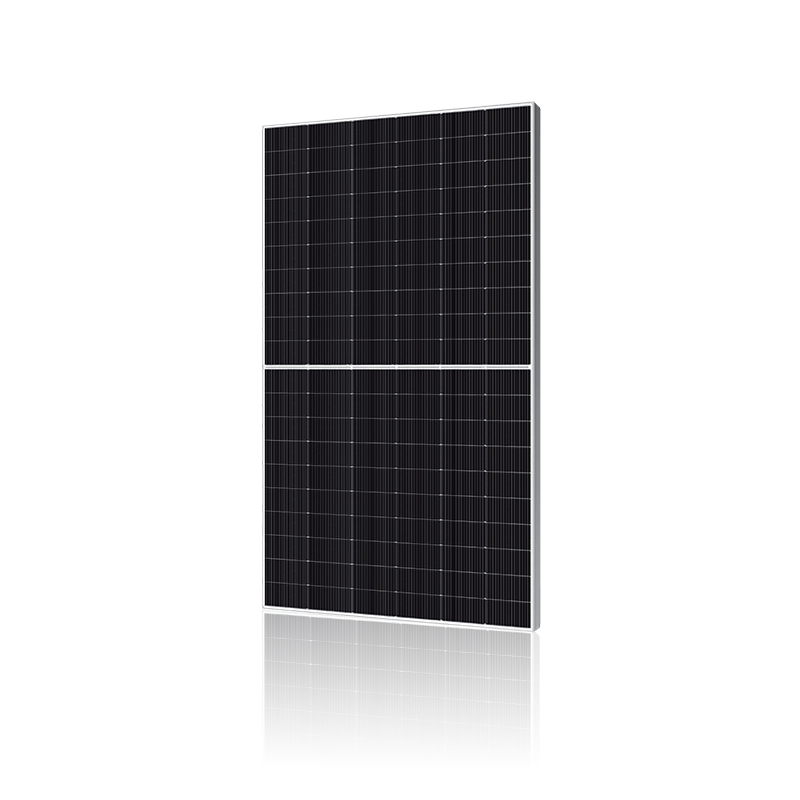

SPxxx-N120R10（480-505W) Silver Frame

  • Warranty & Guarantee
  • Withstand Strong
  • Pid Resistance
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPxxx-N120R10（480-505W) Silver Frame
PREV：SPxxx-N108R10（425-450W) Silver Frame
NEXT：SPxxx-N132R10（520-545W) Silver Frame
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 480W 485W 490W 495W 500W 505W
Max power(Pmax) 480 485 490 495 500 505
Max power voltage(Vmp) 35.88 36.04 36.19 36.35 36.53 36.68
Max power current(lmp) 13.38 13.46 13.54 13.62 13.69 13.77
Open circuit voltage(Voc) 43.29 43.43 43.57 43.72 43.87 44.02
Short circuit current(lsc) 13.94 14.02 14.09 14.17 14.25 14.33
Module Efficiency(%) 21.65 21.88 22.10 22.33 22.55 22.78
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 25A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 480W 485W 490W 495W 500W 505W
Max power(Pmax) 362.2 366.2 370 374 377.8 381.8
Max power voltage(Vmp) 34 34.2 34.4 34.5 34.7 34.8
Max power current(Imp) 10.64 10.71 10.77 10.83 10.90 10.96
Open circuit voltage(Voc) 40.9 41 41.2 41.3 41.5 41.70
Short circuit current(Isc) 11.24 11.3 11.36 11.42 11.48 11.55

Mechanical Data
Dimensions 1955x1134x35mm
Weight 23kg
Glass

3.2mm ultra clear embossed tempered coated glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182mm×93.4mm
Number of cells
 120cells ( Half-Cell )
