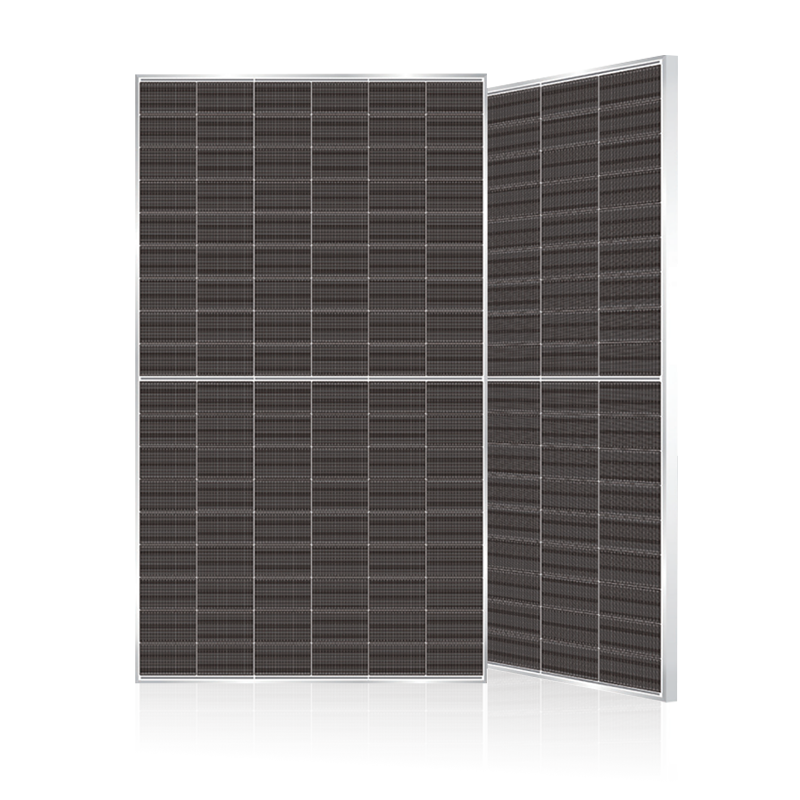

SP-210R-108DSxxx （490-515W) Double Glass Silver Frame

  • Warranty & Guarantee
  • Withstand Strong
  • Advanced Bifacial Efficiency
  • R&D And Production
  • High Energy Yield
Contact Us Download PDF
SP-210R-108DSxxx （490-515W) Double Glass Silver Frame
PREV：SP-210R-108DSNxxx （485-510W) Double-Glazed, Black, Fully Transparent
NEXT：SP-210R-132DSxxx （605-635W) Double Glass Silver Frame 30mm
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 490W 495W 500W 505W 510W 515W
Max power(Pmax) 490 495 500 505 510 515
Max power voltage(Vmp) 33.94 34.05 34.16 34.27 34.38 34.49
Max power current(lmp) 14.44 14.54 14.64 14.74 14.84 14.94
Open circuit voltage(Voc) 40.54 40.65 40.76 40.87 40.98 41.09
Short circuit current(lsc) 15.26 15.37 15.48 15.59 15.7 15.81
Module Efficiency(%) 22.05 22.27 22.50 22.72 22.95 23.17
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Characteristics with 15% Rear Side Power Gain

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 490W 495W 500W 505W 510W 515W
Total power Pmax/W 563.5 569.25 575 580.75 586.5 592.25
Vmp/V(Total) 33.94 34.05 34.16 34.27 34.38 34.49
Imp/A(Total) 16.6 16.72 16.83 16.95 17.06 17.17
Voc/V(Total) 40.54 40.65 40.76 40.87 40.98 41.09
Isc/A(Total) 17.55 17.67 17.80 17.92 18.05 18.17
Mechanical Data
Dimensions 1960x1134x30mm
Weight 27.4 kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm semi-tempered glass
Output cables 4mm², 1300mm in length, length can be customized / UV Resistant
Connectors MC4 compatible IP68
Cell type
 Mono-Crystalline ,Bifacial HJT, 182x105mm
Number of cells
 108cells ( Half-Cell )
