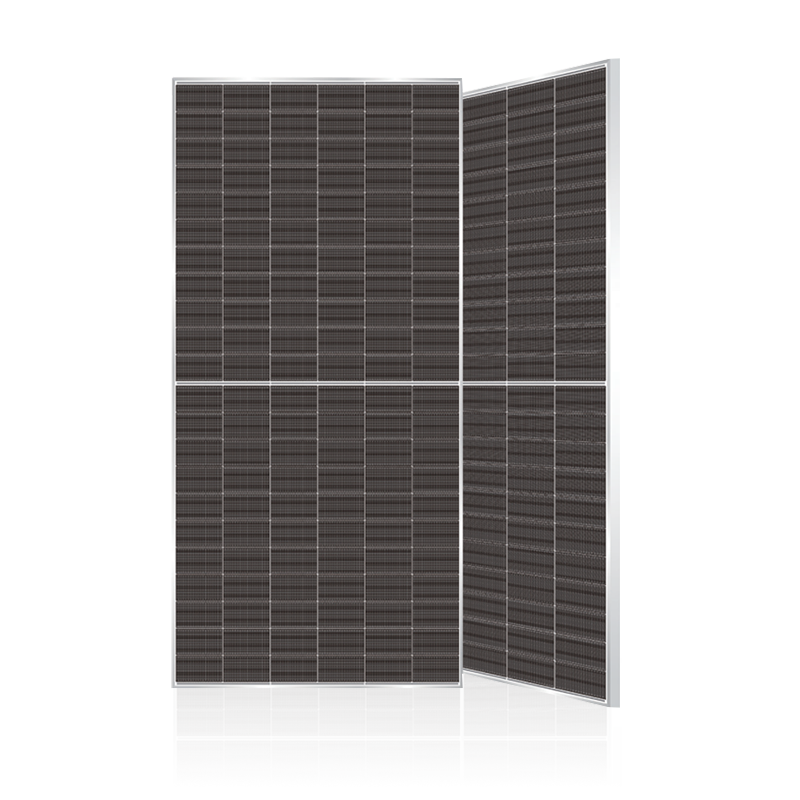

SP-210R-132DSxxx （605-635W) Double Glass Silver Frame 30mm

  • Warranty & Guarantee
  • Withstand Strong
  • Advanced Bifacial Efficiency
  • R&D And Production
  • High Energy Yield
Contact Us Download PDF
SP-210R-132DSxxx （605-635W) Double Glass Silver Frame 30mm
PREV：SP-210R-108DSxxx （490-515W) Double Glass Silver Frame
NEXT：SP-210R-132DSxxx （605-635W) Double Glass Silver Frame
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 605W 610W 615W 620W 625W 630W 635W
Max power(Pmax) 605 610 615 620 625 630 635
Max power voltage(Vmp) 41.82 42.00 42.15 42.30 42.46 42.62 42.77
Max power current(lmp) 14.47 14.53 14.6 14.66 14.72 14.79 14.85
Open circuit voltage(Voc) 50.57 50.63 50.8 50.98 51.16 51.35 51.53
Short circuit current(lsc) 15.27 15.32 15.37 15.42 15.47 15.52 15.57
Module Efficiency(%) 22.40 22.58 22.77 22.95 23.14 23.32

23.51
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Characteristics with 15% Rear Side Power Gain

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 605W 610W 615W 620W 625W 630W 635W
Total power Pmax/W 695.75 701.5 707.25 713 718.75 724.5 730.25
Vmp/V(Total) 41.82 42.00 42.15 42.30 42.46 42.62 42.77
Imp/A(Total) 16.64 16.70 16.78 16.86 16.93 17.00 17.07
Voc/V(Total) 50.57 50.63 50.8 50.98 51.16 51.35 51.53
Isc/A(Total) 17.56 17.59 17.61 17.67 17.79 17.84 17.90
Mechanical Data
Dimensions 2382x1134x30mm
Weight 33.6 kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm semi-tempered glass
Output cables 4mm², 1300mm in length, length can be customized / UV Resistant
Connectors MC4 compatible IP68
Cell type
 Mono-Crystalline ,Bifacial HJT, 182x105mm
Number of cells
 132cells ( Half-Cell )
