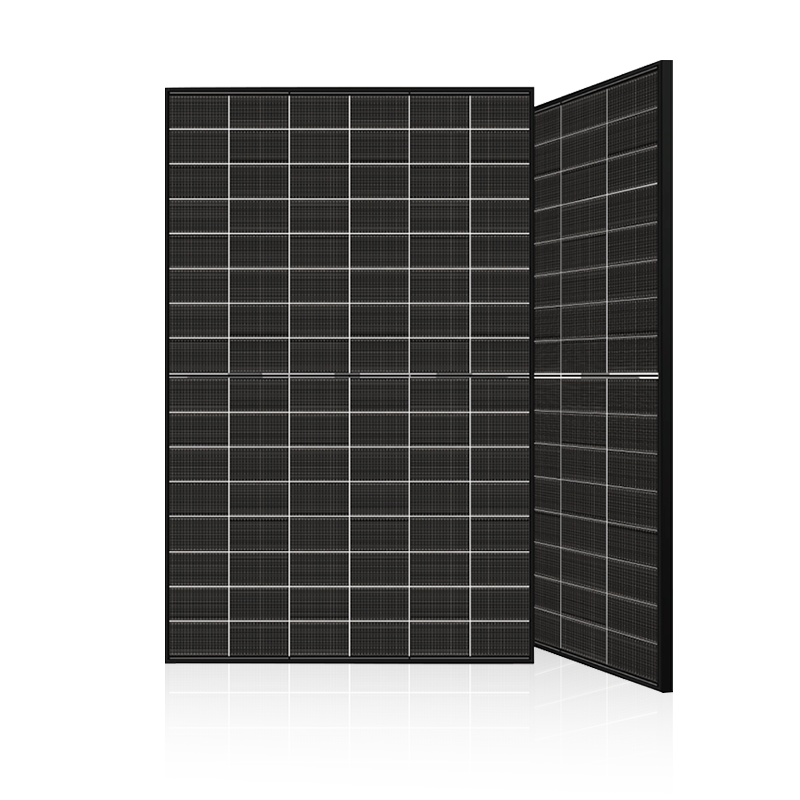

SP-210R-96DSNxxx （430-450W) Double-Glazed, Black, Fully Transparent

  • Warranty & Guarantee
  • Withstand Strong
  • Advanced Bifacial Efficiency
  • R&D And Production
  • High Energy Yield
Contact Us Download PDF
SP-210R-96DSNxxx （430-450W) Double-Glazed, Black, Fully Transparent
PREV：SP-210R-96DSBxxx （425-445W) Double Glass Black Grid
NEXT：SP-210R-108DSBxxx （475-500W) Double Glass Black Grid
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 430W 435W 440W 445W 450W
Max power(Pmax) 430 435 440 445 450
Max power voltage(Vmp) 30.39 30.5 30.61 30.72 30.83
Max power current(lmp) 14.16 14.27 14.38 14.49 14.6
Open circuit voltage(Voc) 36.32 36.42 36.52 36.62 36.72
Short circuit current(lsc) 15.09 15.2 15.31 15.42 15.53
Module Efficiency(%) 21.52 21.77 22.02 22.27 22.52
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Characteristics with 15% Rear Side Power Gain

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 430W 435W 440W 445W 450W
Total power Pmax/W 494.5 500.25 506 511.75 517.5
Vmp/V(Total) 30.39 30.5 30.61 30.72 30.83
Imp/A(Total) 16.27 16.4 16.53 16.66 16.79
Voc/V(Total) 36.32 36.42 36.52 36.62 36.72
Isc/A(Total) 17.29 17.47 17.6 17.73 17.85
Mechanical Data
Dimensions 1762x1134x30mm
Weight 24.9 kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm semi-tempered glass
Output cables 4mm², 1300mm in length, length can be customized / UV Resistant
Connectors MC4 compatible IP68
Cell type
 Mono-Crystalline ,Bifacial HJT, 182mm x 105mm
Number of cells
 96 cells ( Half-Cell )
